Our Fleet & Equipment

AMS Power Probe 9580 Rubber Track Mount

The AMS 9580 is one of the smallest rigs in our fleet.  Although its size is compact the 9580 enables the consultant to conduct environmental sampling utilizing direct push or geotechnical testing with a 2” split-spoon sampler (SPT).  The high torque rotary box (5000 ft lbs) allows us to sample and then auger for a proper well installation through the toughest conditions.

AMS 9580-VTR Tooling

  • 3.25”/4.5” Dual Tube Sampler
  • Macro Sampler
  • Insitu Groundwater Sampling
  • 4” and 6” Solid Augers
  • 2.75” – 10.25” ID Hollow Augers
  • 140 lb. Auto Hammer for SP Testing

AMS 9580-VTR Safety

  • Emergency shutdown system (multiple push buttons and whiskers)
  • Auger Guard (interlocked to emergency shutdown system)
  • Remote Radio Controlled
  • Direct Push
  • Stainless Split Tube Liners (no cutting required)

AMS 9580-VTR Specifications

  • Height (Driving): 2.51 m
  • Height (Full Tower): 4.80 m
  • Width: 1.67 m
  • Length: 4.80 m
  • Weight: 5 400 kg
AMS VTR

CME 75 Truck Mounted Drill

Considered to be the workhorse of the CME line of drills these rigs will be able to complete your drill program no matter what the soil or rock conditions.

CME 75 Tooling

  • 4” and 6” Solid Augers
  • 2.75” – 10.25” ID Hollow Augers
  • NQ, HQ and PQ Diamond Core Barrels
  • 3.25”, 5.25” and 6.25” Tricone
  • CME Continuous Soil Sampler (3.5” ID)
  • CME 140 lb. Auto Hammer for SP Testing

CME 75 Safety

  • Emergency shutdown system (multiple push buttons and whiskers)
  • Hydraulic spindle brake
  • Driller’s Guard (interlocked to emergency shutdown system)
  • Auger Guard
  • Strobe Light
  • Hydraulic Breakout Wrenches to safely unthread drill strings

CME 75 Specifications

  • Height (Driving): 2.95m – 3.20m
  • Height (Split Tower): 6.40m – 6.96m
  • Height (Full Tower): 9.19m – 10.67m
  • Width: 2.95 m
  • Length: 8.84m – 9.60m
  • Weight: 22,000kg – 25,500 kg
CME 75

CME 55 Rubber Tracked Drill

Hydraulically operated Morooka carriers utilize a full rubber track perfect for sites that involve the unloading and travel across asphalt, train tracks or soft terrain.    These high torque 55’s offer enough strength to turn 10.25” augers to 100’ and are fully outfitted for wireline coring and mud rotary.

CME55 Tooling

  • 4” and 6” Solid Augers
  • 2.75” – 10.25” ID Hollow Augers
  • NQ, HQ and PQ Diamond Core Barrels
  • 3.25”, 5.25” and 6.25” Tricone
  • CME Continuous Sampler (3.5” ID)
  • CME 140 lb. Auto Hammer for SP Testing

CME55 Safety

  • Emergency shutdown system (multiple push buttons and whiskers)
  • Hydraulic spindle brake
  • Driller’s Guard (interlocked to emergency shutdown system)
  • Auger Guard
  • Rubber Track (average ground pressure 4.5 psi)

CME55 Specifications

  • Height (Driving): 2.90 m
  • Height (Split Tower): 5.64 m
  • Height (Full Tower): 7.85 m
  • Width: 2.49 m
  • Length: 5.26 m
  • Weight: 11 400 kg
CME Rubber 55

CME55LC – Low Clearance

The CME55LC has a unique feed and retract system and a quick disconnect mast that allow you to work under overhead obstructions as low as 13’ while not comprising any of the strength or capability of a regular CME55 high torque drill.

CME55LC Tooling

  • 4” and 6” Solid Augers
  • 2.75” – 10.25” ID Hollow Augers
  • NQ, HQ and PQ Diamond Core Barrels
  • 3.25”, 5.25” and 6.25” Tricone
  • CME Continuous Soil Sampler (3.5” ID)
  • CME 140 lb. Auto Hammer for SP Testing

CME55LC Safety

  • Emergency shutdown system (multiple push buttons and whiskers)
  • Hydraulic spindle brake
  • Driller’s Guard (interlocked to emergency shutdown system)
  • Auger Guard
  • Remote Radio Controlled
  • Hydraulic Breakout Wrenches to safely unthread drill strings
  • Rubber Track (average ground pressure 4.5 psi

CME55LC Specifications

  • Height (Driving): 2.75 m
  • Height (Split Tower): 3.91 m
  • Height (Full Tower): 5.49 m
  • Width: 2.31 m
  • Length: 4.60 m
  • Weight: 7 500 kg
CME LC

CME55LC – Low Clearance

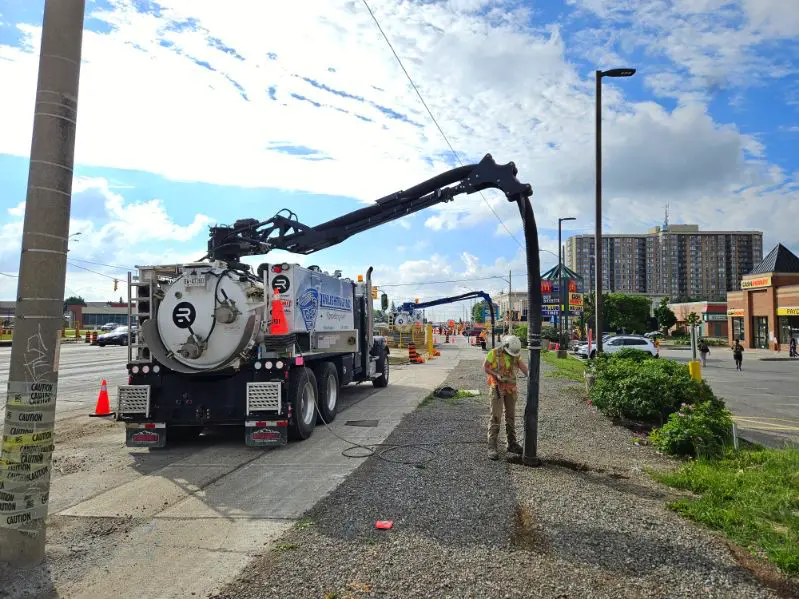

This powerful air-vacuum excavation system gives you the power to daylight like never before with high-velocity, supersonic air that explodes the soil from within for easy vacuuming and yet will not damage any underground utility. Holes may be advanced up to 200’ away from the vacuum truck.  Environmental sampling is easily accomplished but way of a side sampler.  Spoil may be either placed back down the borehole and compacted or drummed as a dry solid (no need to manifest as a liquid). Having to daylight under concrete or asphalt? No problem, just use the diamond concrete saw which is included.

Vacmaster Tooling

  • Diamond Asphalt/Concrete Saw
  • Pneumatic Tamper to Backfill BH’s
  • Drum Interceptor
  • 50’ Vacuum/Pressure Line
  • Additional Hose Upon Request (up to 200’)
  • Hot or Cold Pressure Washer (Winter/Summer)

Vacmaster Safety

  • Emergency shutdown system if the high pressure line fails
  • Gate Valves vs Ball Valves to eliminate the accidental opening of the valve
  • Radio remote button able to shut down system if required
  • Additional noise reducing muffler

Vacmaster Specifications

  • Height (Driving): 3.30 m
  • Width: 2.95 m
  • Length: 8.33 m
  • Weight: 10 000 kg
VM

Miscellaneous Equipment

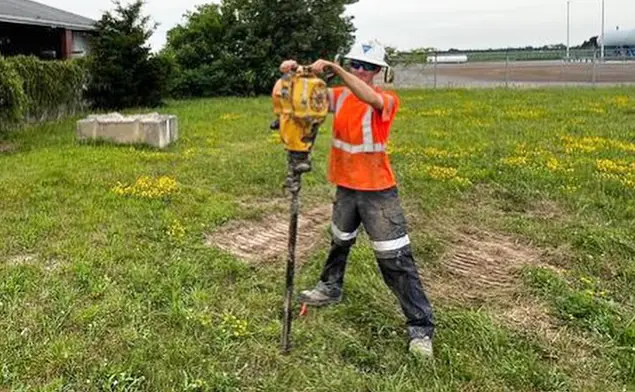

  • Pionjar (gas and pneumatic)
  • Water Carriers 8000 Litre (Truck Mount)
  • Water Carrier 6000 Litre (All Terrain Morooka Rubber Track)
  • Water Carrier 4000 Litre (All Terrain Bombardier Rubber/Metal Track)

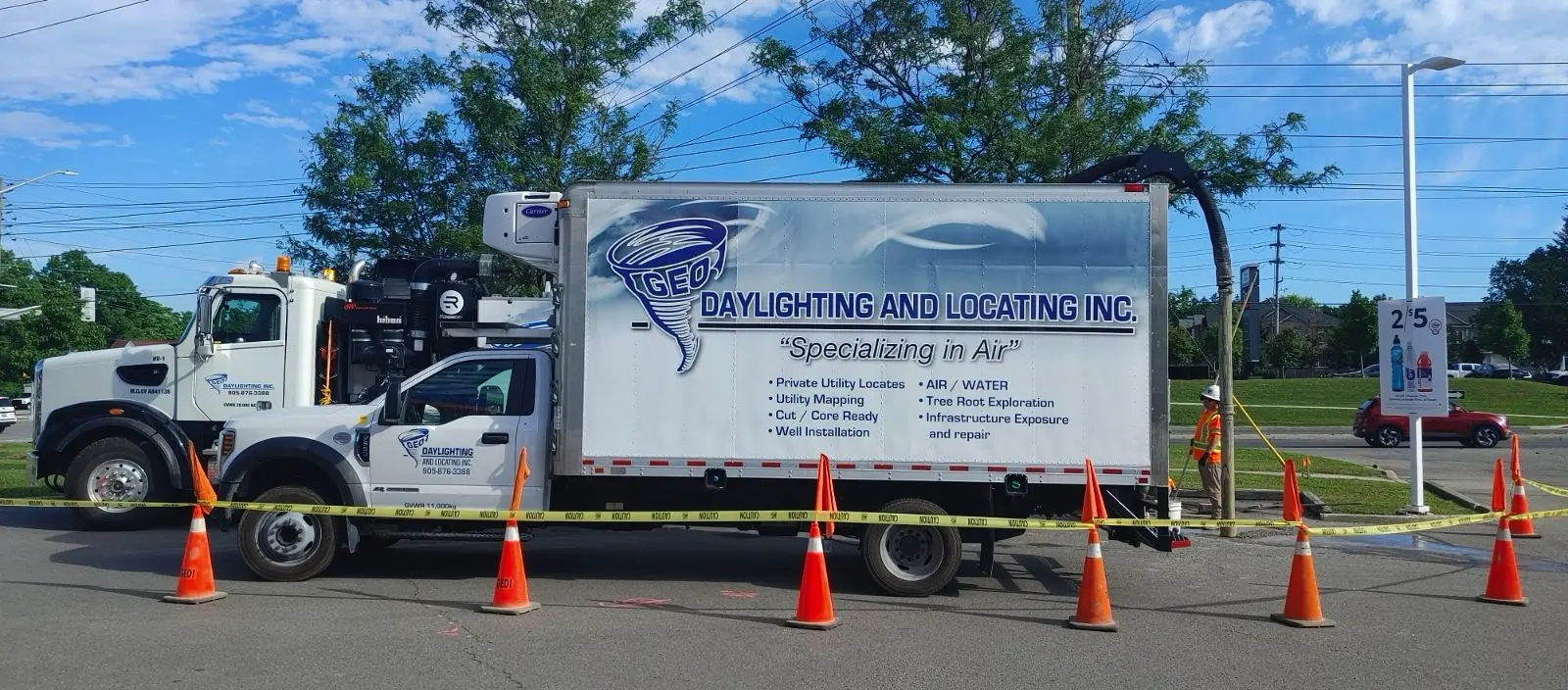

  • Service Trucks (4,400kg – 22,000kg GVW)
